PRODUCTS

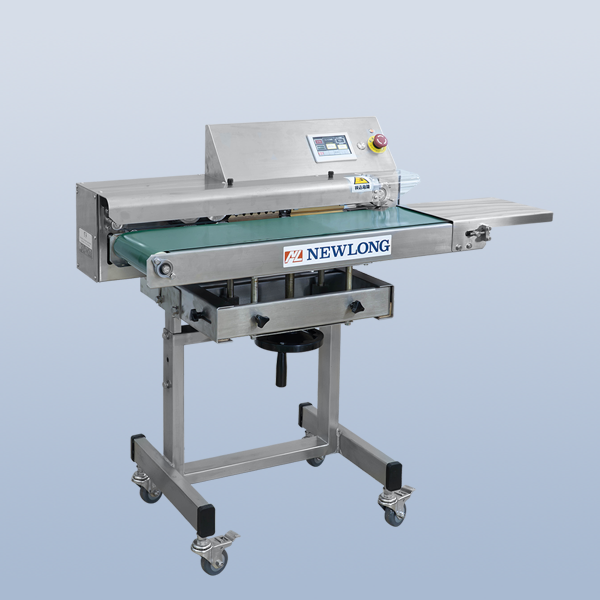

BD-8
BD-8 (SUS Standard)

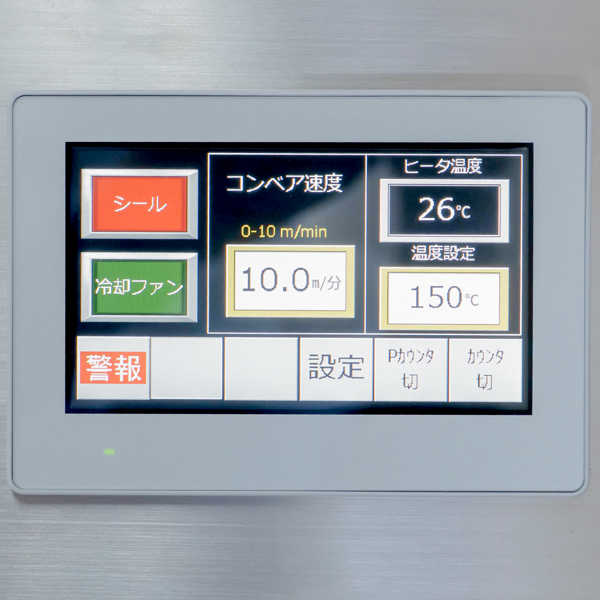

The control panel has been upgraded from physical push buttons to a touch panel, and stable operation is ensured by PLC control. This high-performance sealing machine improves both operability and safety. The conveyor can be extended forward by 60 mm and vertically adjusted by 50 mm using the adjustment handle. The main unit can be tilted up to 15 degrees from the horizontal plane.
| Heater Width | 8mm |
| Conveyor Speed | 4-12 m/min |
| Sealing Temperature | 0-250°C |
| Power Consumption | 1,000W |
| Power Supply | 100V, 50/60 Hz |
| Machine Dimensions | 885 (L) × 511 (W) × 995 (H) mm |

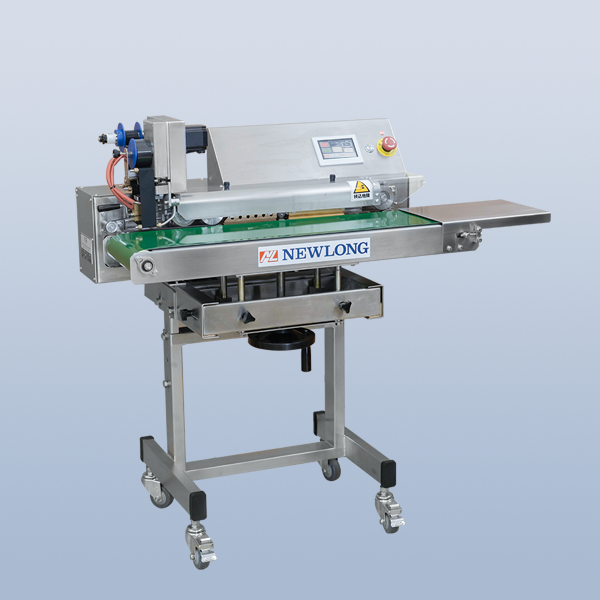

BD-8P

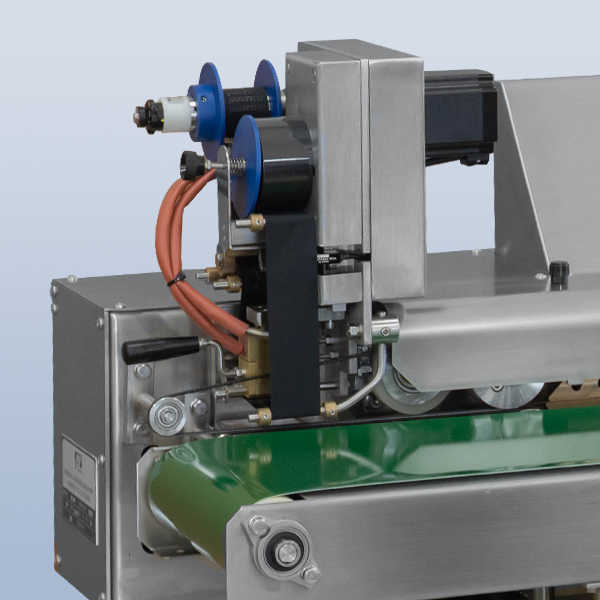

Printing positions can be easily set via the touch panel. Equipped with a built-in counter, the hot printer enhances workflow efficiency and boosts productivity.
| Maximum print width | 33 mm (ribbon width: 35 mm) |
| Character size | 4 mm (high) |
| Printing Rows | Switchable between 1 and 2 rows |
| Bag detection method | Photoelectric sensor |
