7CM
7CM-TS

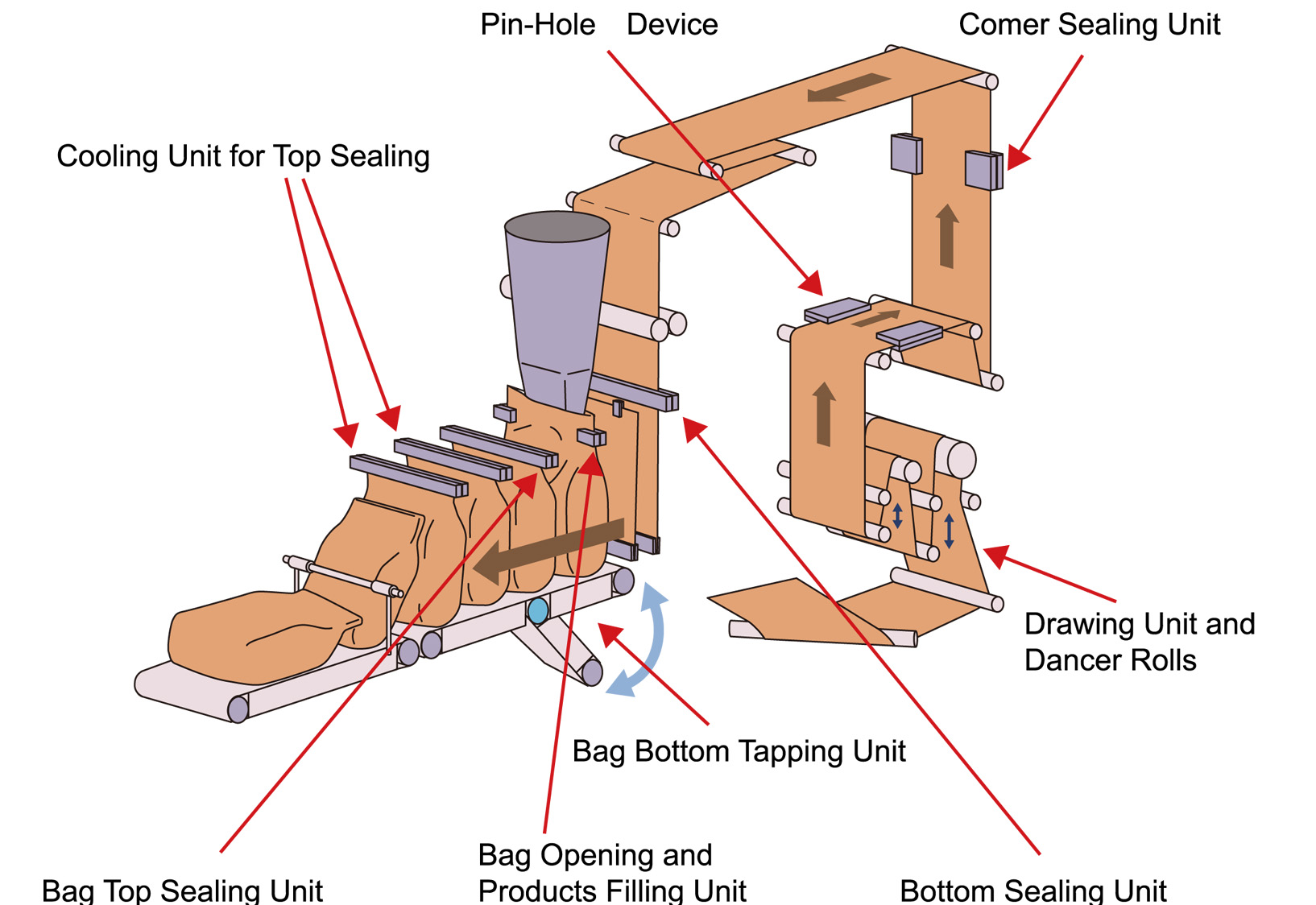

Side gusseted PE film bag making and filling system.
The vertical transferring mechanism for filled bags shortens the travel distance, resulting in a compact, high-performance design. The entire process from unwinding PE film to sealing the filled bag and discharging is performed in a seamless, continuous operation.
| Capacity (bags/Hour) | Max. 1600 *Capacity depends on product character and bag specifications |
| Products | Resin Pellet |
| Bag Bottom Sealing | Impulse Seal |
| Bag Mouth Sealing | Impulse Seal |
| Corner Sealing | Hot Plate |
| Packaging Material + Film Thickness | 130-200μ |
| Packaging Material + Film Roll | Gusseted Tube Roll |
| Packaging Material + Outer Roll Diameter | Max. 1500mm |
| Packaging Material + Inner Core Diameter | 150mm |
