PRODUCTS
3CM-3/3CM-5

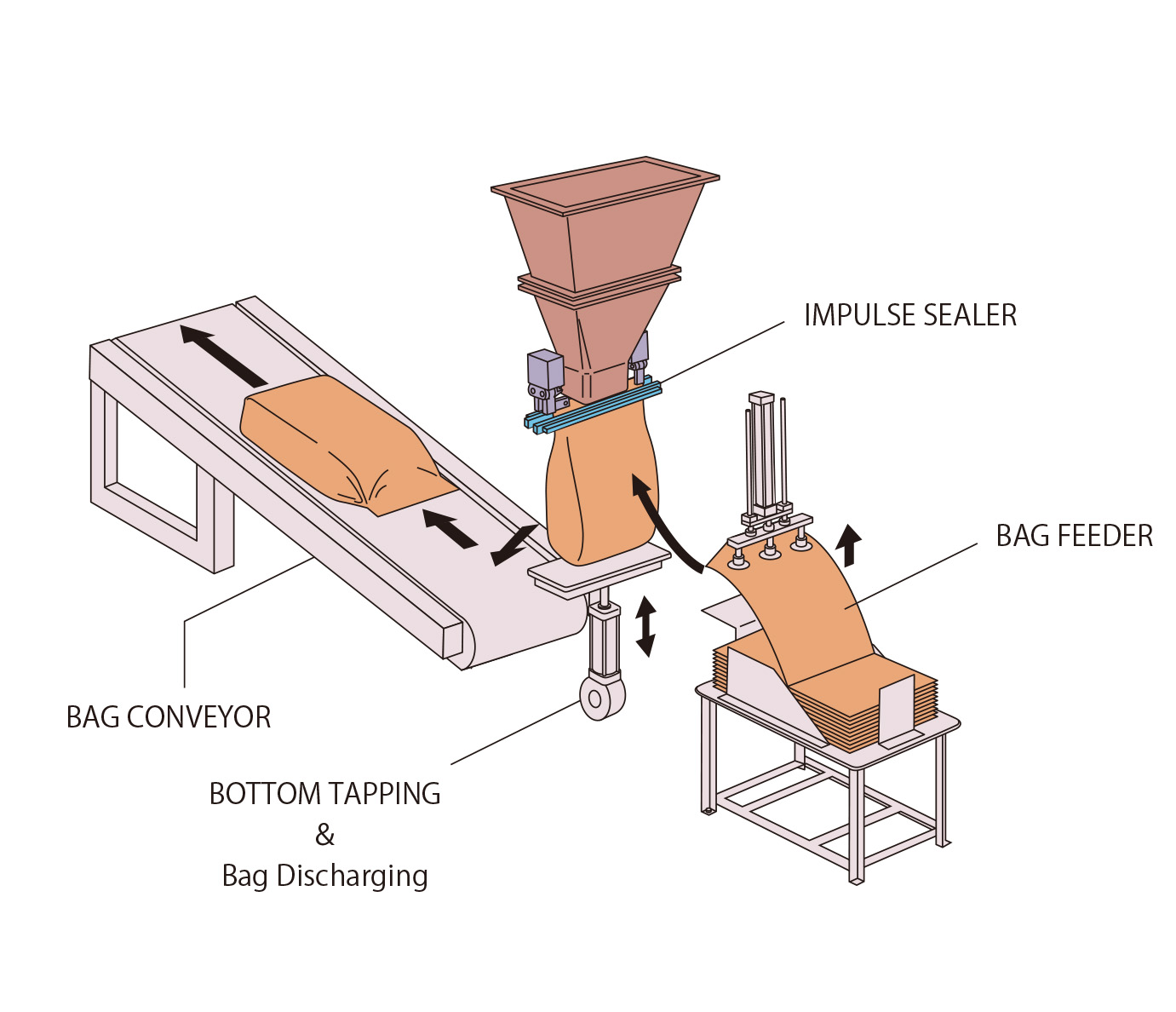

3CM-55
A compact automatic bagging machine integrating a volumetric filler and an impulse sealing unit.
Bag feeding, product filling, sealing, and discharge are all integrated into a single section, achieving a space-saving design. An automatic volumetric filling and bagging machine with rear discharge.
| Capacity (bags/Hour) | 230 *Capacity depends on product character and bag specifications |
| Bag Material | PE bag (with pin-hole) |
| Set Volume | 18~23L |
| Weighing Method | Net / Gross Weighing |
| Bag Sealing Method | Impulse seal |

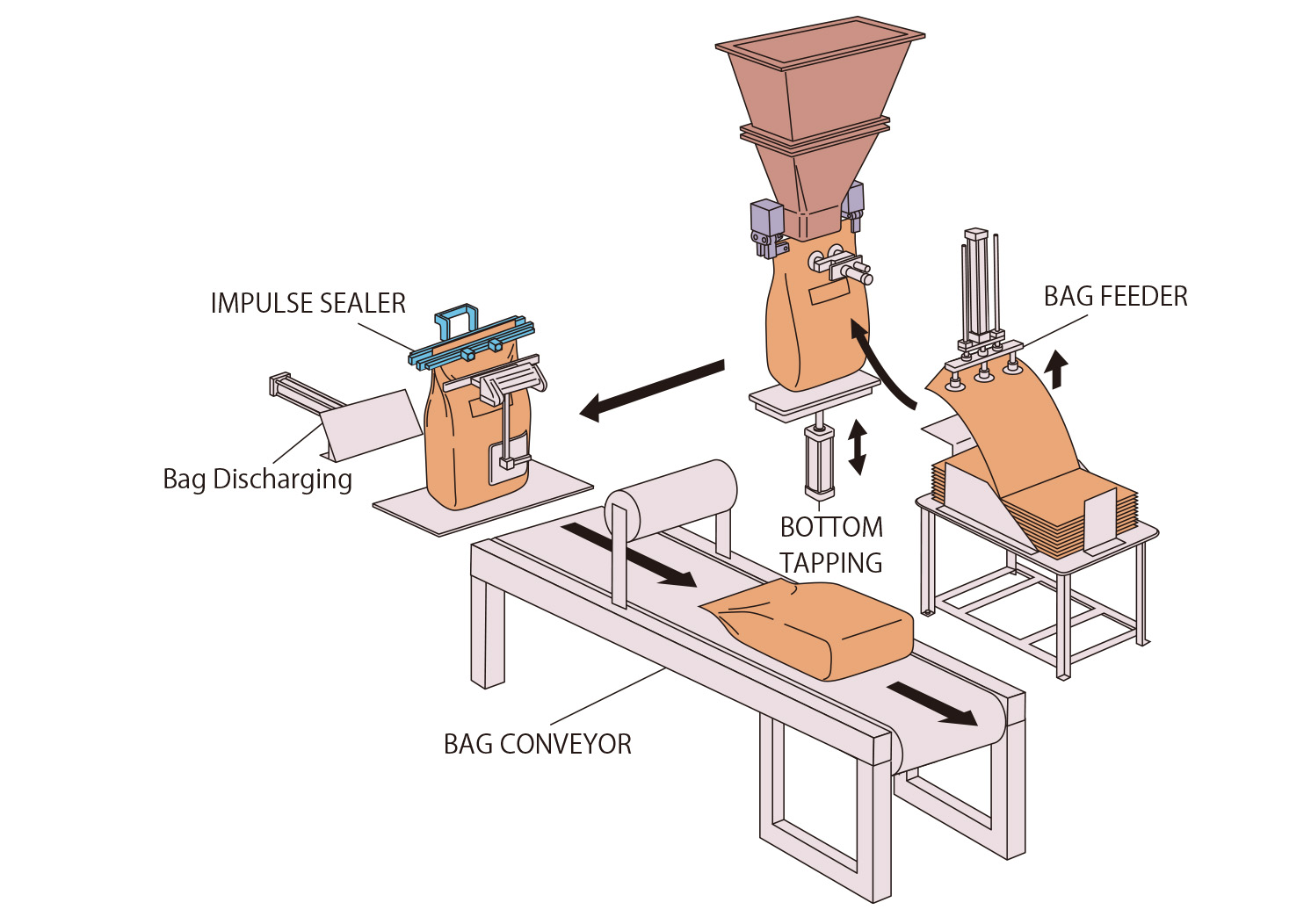

3CM-52
A compact automatic bagging machine integrating a volumetric filler and an impulse sealing unit.
Space-saving design achieved by dividing the machine into two sections: bag feeding/product filling section and the sealing/discharge section. An automatic volumetric filling and bagging machine with front discharge.
| Capacity (bags/Hour) | Max. 300 *Capacity depends on product character and bag specifications. |
| Bag Material | PE Bag (with pin-hole) |
| Set Volume | 20~40L |
| Weighing Method | Net/Gross Weighing |
| Bag Sealing Method | Impulse sealing |

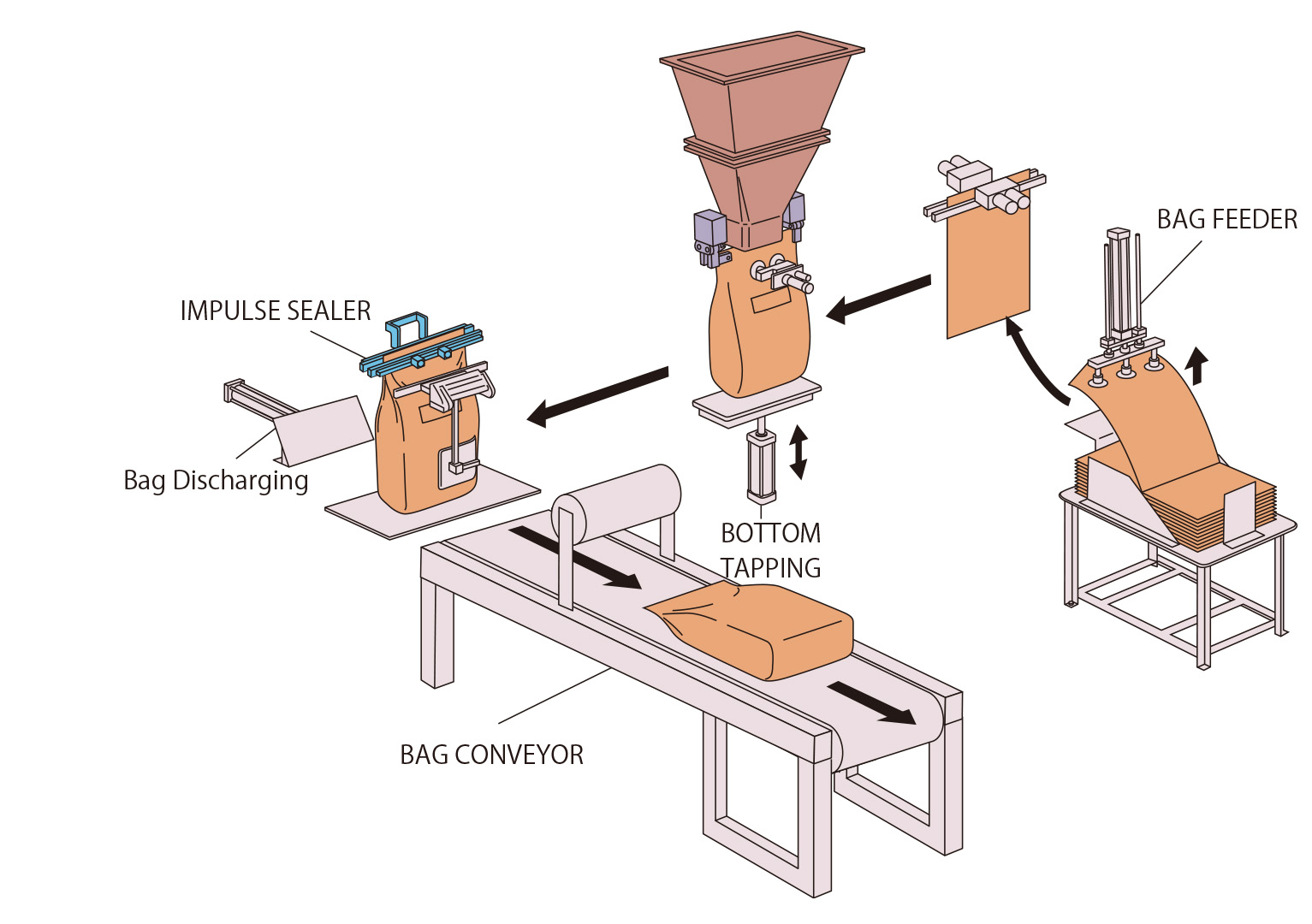

3CM-35
A compact automatic bagging machine integrating a volumetric filler and an impulse sealing unit.
Space efficiency and improved throughput are achieved by dividing the system into three sections: bag feeding, product filling, and sealing/discharge. An Automatic volumetric bagging and packaging machine with front discharge.
| Capacity (bags/hour) | Max. 350 *Capacity depends on product character and bag specifications |
| Bag Material | PE Bag (with pin-hole) |
| Set Volume | 20~40L |
| Weighing Method | Net/Gross Weighing |
| Bag Sealing Method | Impulse seal |
