3CM-5FG
The definitive bagging machine for powdery products! Perfectly suited for food packaging.
Model 3CM-5FG is a gross-weighing type automatic bagging machine that fills products from the bottom of the bag using an auger screw. By maintaining a short flying load distance between the powder surface inside the bag and the filling point, it minimizes dust generation and dispersion, allowing for highly accurate weighing and filling.
PRODUCTS
POINT

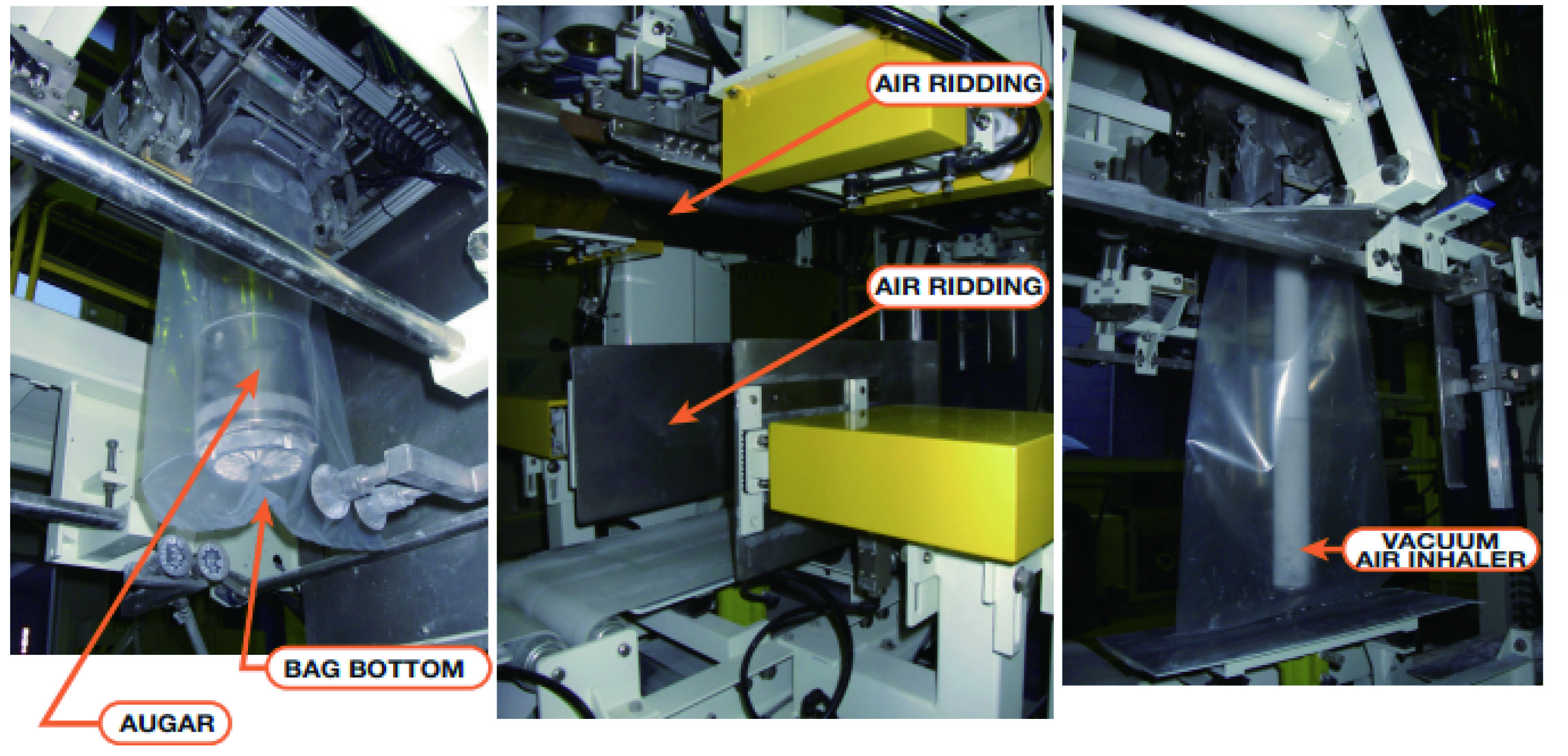

- By using an auger screw with vacuum air inhaler, it is possible to fill the product while minimizing its bulk density.
- Designed to be disassembled and cleaned easily, making it suitable for food products.
- At the secondary section, either a vacuum air inhaling rod for improved vacuum efficiency; or calibration for enhanced weighing accuracy can be installed.
Standard Specifications
Capacity*1 |
Max. 200 Bags / Hour |
Products |
Fine Powder, Powdery products |
|
Filling Weight |
5～25kg |
|
Weighing Accuracy*2 |
±1/500 |
|
Bag Material |
Kraft Paper Bag, PP/PE bag |
|
Bag Size*3 |
750～1000L×420～550W |
|
Air Consumption |
Approx. 1000NL／min(0.5MPa) |
|
Power Required |
Approx. 50.7kVA |
|
Dust Collecting Air Volume |
Approx. 20m3／min(2.3kPa) |
|
Dust Collecting Volume*4 |
Approx. 5kg／1000 Bags |
|
Machine Weight |
Approx. 3000kg (Main body of bagging machine) |
*1 Depending on products, bag size and bag materials
*2 Depending on products’ character
*3 Advised kindly customer’s size except for the above
*4 According to actual data

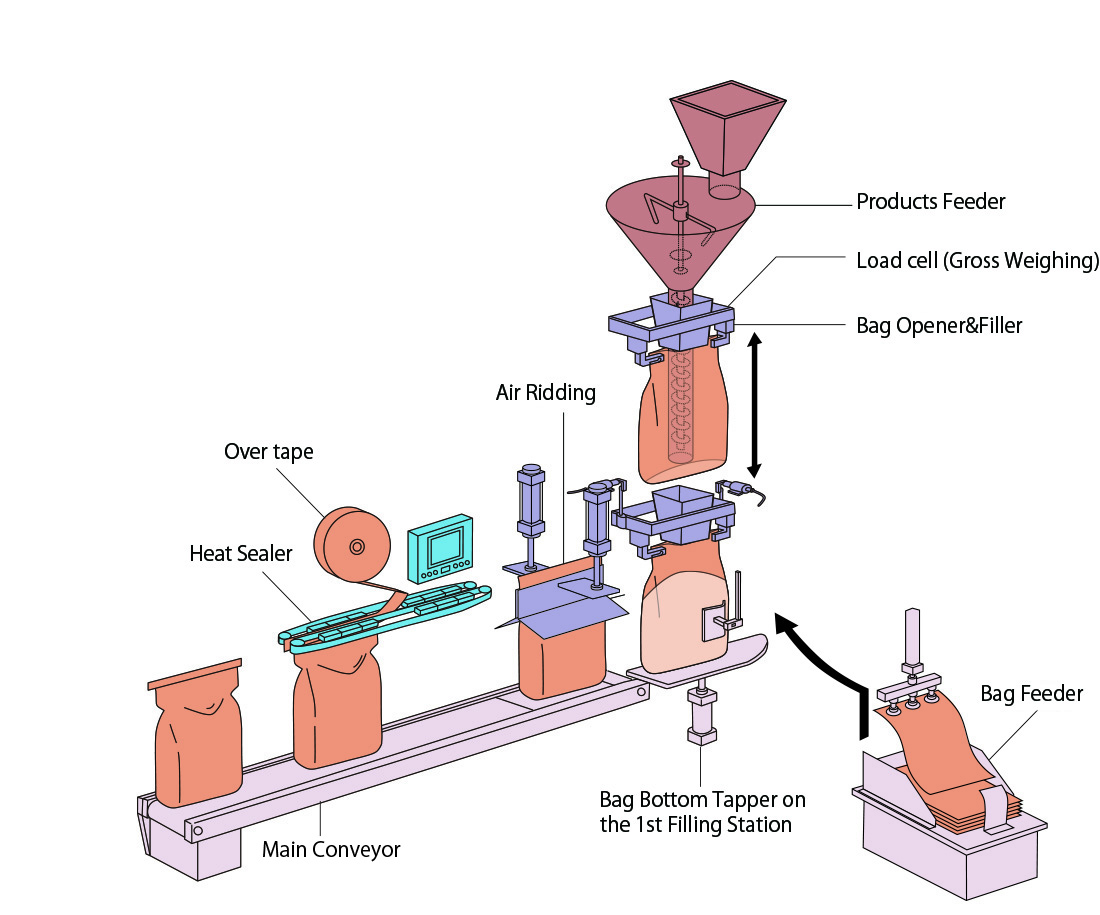

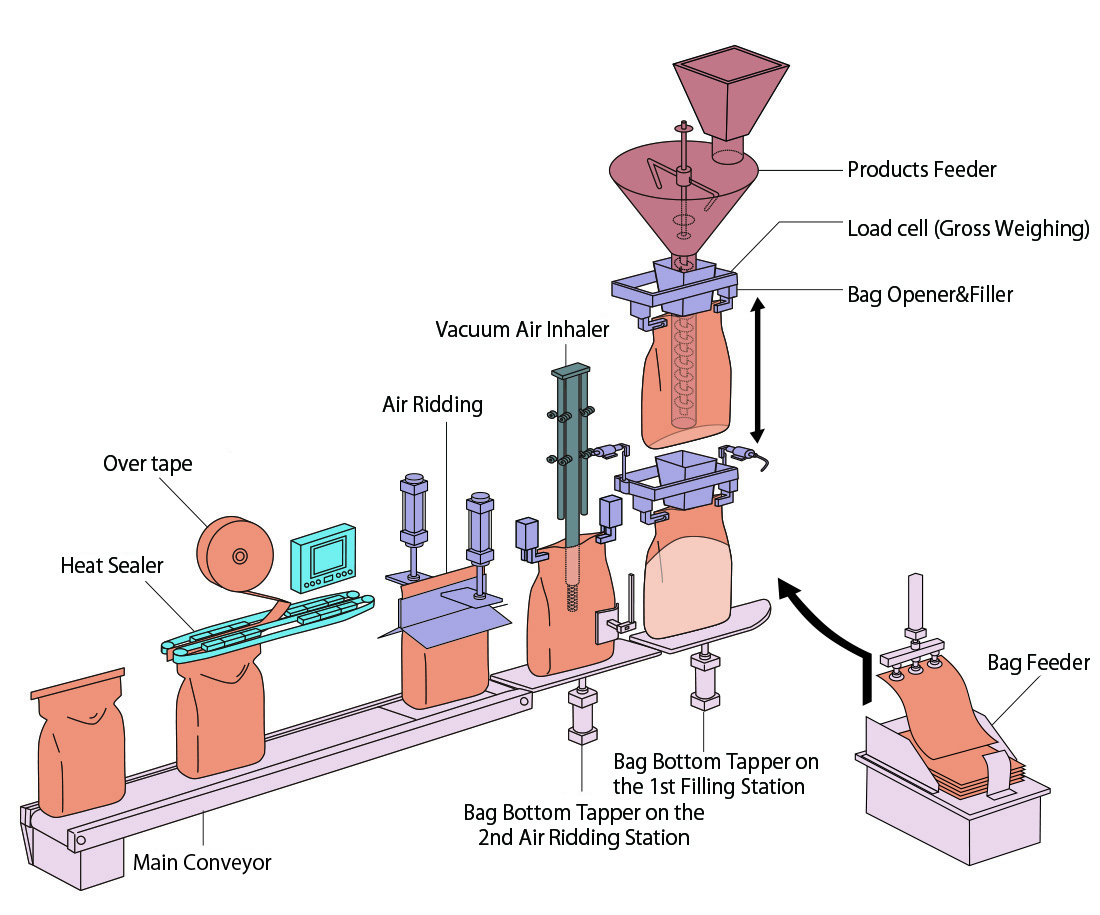

Machine Configuration
