PRODUCTS
3CM-5BG/3CM-5AG
3CM-5BG
Compact Design, Minimal Installation Space, and Cost-Effective Solution.

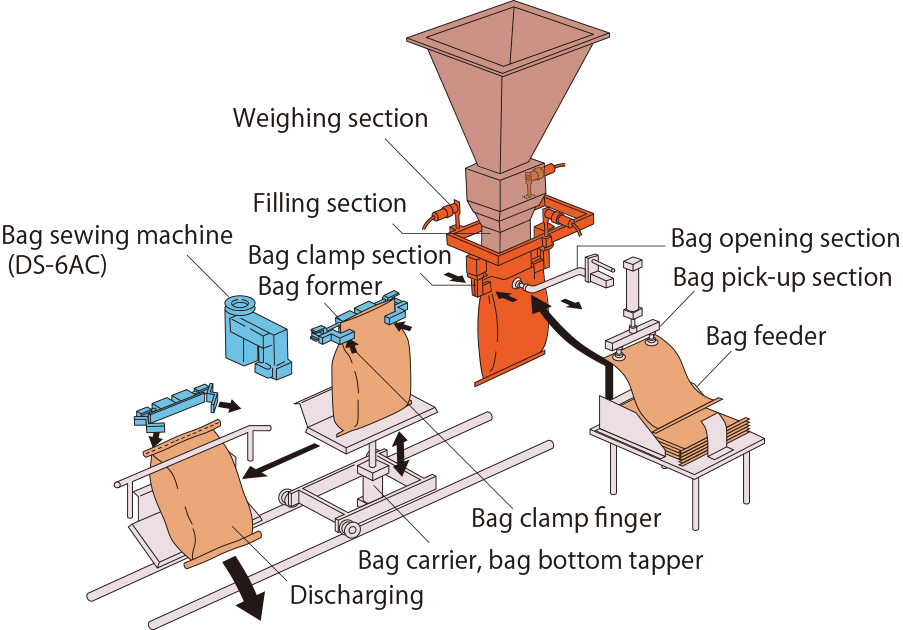

Model 3CM-5BG is a gross weighing automatic bagging machine that enables direct filling and stimultaneous weighing of granular products. Featuring a swing-type bag feeding system, the machine allows for easy clamping of bags directly onto the chute, simplifying both operation and maintenance. The standard configuration includes a sewing system, but an optional heat-sealing unit can be integrated upon request.
| Max. Capacity (bags/Hour) | 120*1 |
| Bag Material | 3~4 Ply Kraft Paper Bag |
| Bag Size (mm) | 650~850L x 400~440W x 76GW |
| Filling Weight (kg/bag) | 25（20kg～30kg） |
| Weighing Accuracy | ±1/1000 (When filling weight is 25kg) |
3CM-5AG
3CM-5AG Bag Transfer Conveyor Type
The compact 5BG model can be equipped with an automatic sealing unit.
| Max. Capacity (bags/hour) | 130*1 |
| Bag Material | Kraft Paper Bag, PE Bag, Inner PE laminated Bag*2 |
| Bag Size (mm) | 650~850L x 400~440W x 76GW |
| Filling Weight | 25kg (20~30kg) |
| Weighing Accuracy | ±1/1000 (When filling weight is 25kg)*1 |
*1 Capacity depends on product character and bag specifications
*2 In case combining with KS series
