PRODUCTS
3CM-3G/3CM-5G

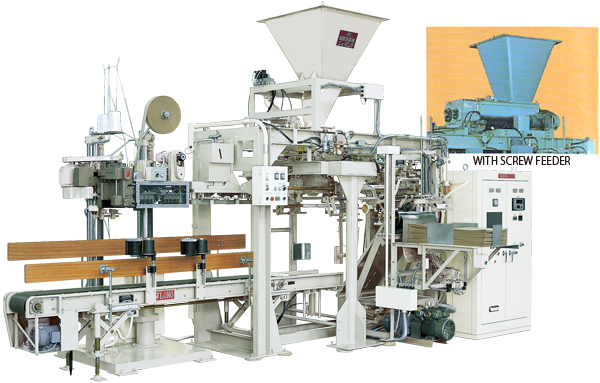

3CM-3G

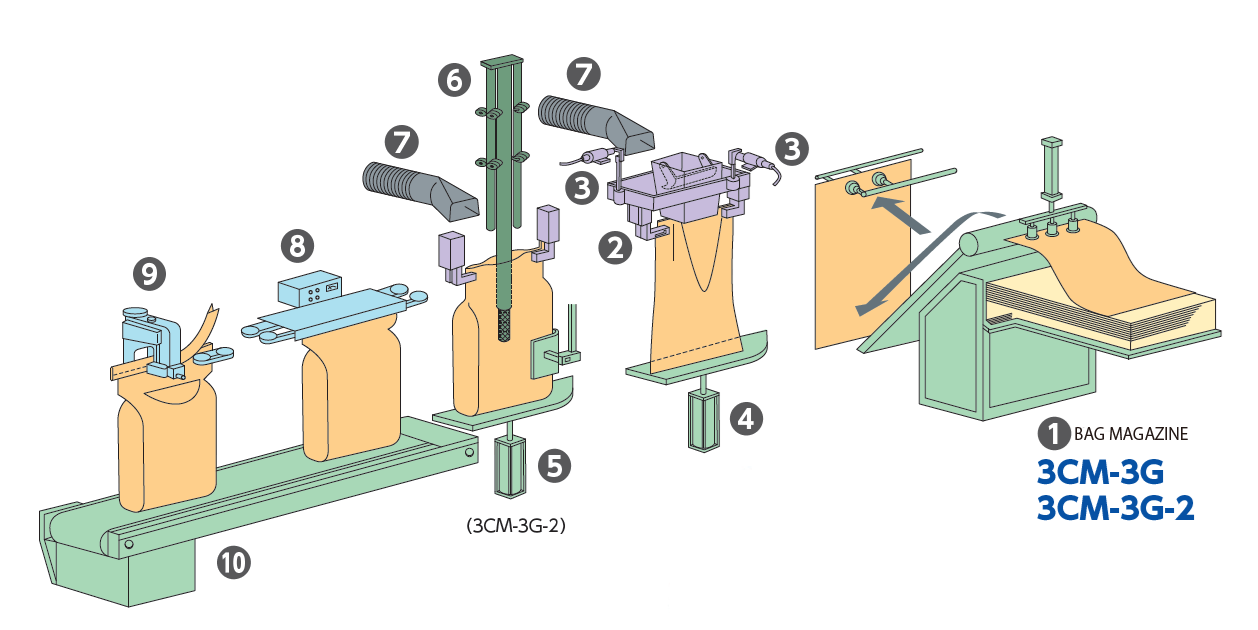

Model 3CM-3G is a gross weighing automatic bagging machine that directly fills the bag with products and performs bagging based on gross weighing measurement. The introduction of gross weighing measurement system has significantly improved the productivity of powdery product packaging. To enhance capacity, a vacuum device (primary filling, secondary vacuum method) can be incorporated.
| Max. Capacity (bags/Hour) | 300 *Capacity depends on product character and bag specifications. |
| Bag Material | Kraft Paper Bag, Paper Cloth Bag, PP/PE Woven-cloth bag (Inner Laminated) |
| Bag Size (mm) | 650~850L x 380~550W |
| Filling Weight (kg/bag) | 20~30 |

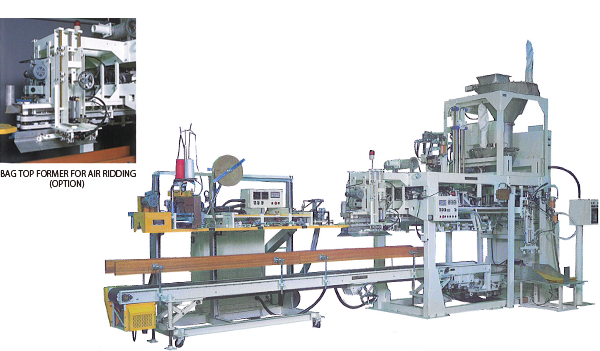

3CM-5G

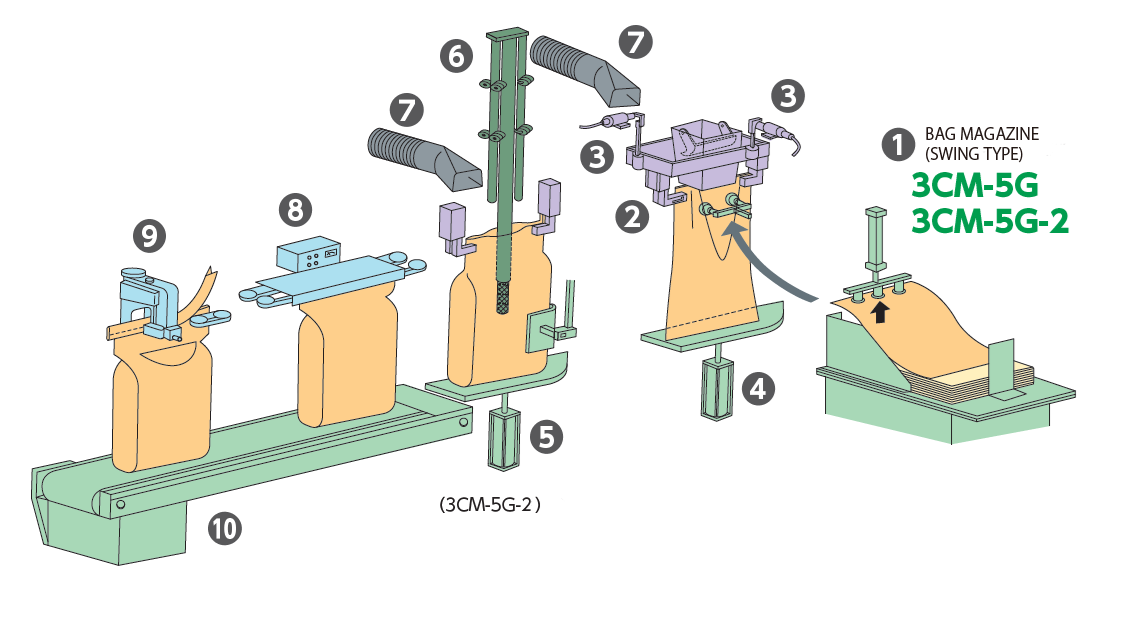

Model 3CM-5G is a low-cost gross weighing automatic bagging machine featuring a swing-type bag feeding system, allowing the bag to be directly clamped onto the chute. To enhance capacity, a vacuum device (primary filling・secondary vacuum method) can be incorporated.
| Max. Capacity (bags/hour) | 230 *Capacity depends on product character and bag specifications. |
| Bag Material | Kraft Paper Bag, Paper Cloth Bag, PP/PE Woven-cloth bag (Inner Laminated) |
| Bag Size (mm) | 650~850L x 380~500W, In case of 3-Ply Kraft Paper Bag |
| Filling Weight (kg/bags) | 20~30 (Standard) |
Feeder Application
Feeder has a variety choice, depending on product.
